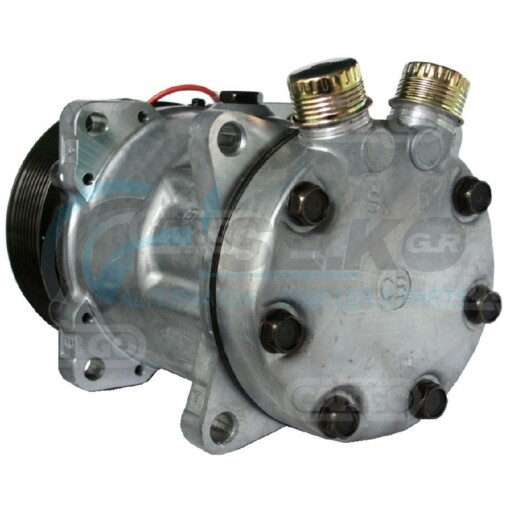

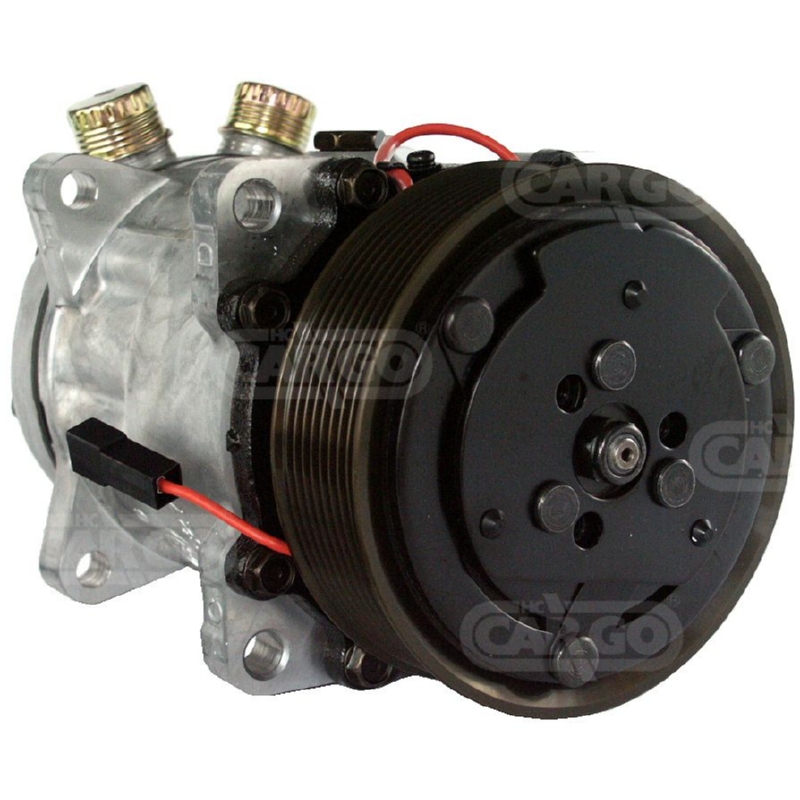

240403 Συμπιεστής A/C Γενικής Εφαρμογης Πανω Χοντρη Χοντρη SD7H15 8Κ

Voltage: 12
Family type: SD7H15
Mount. holes/front 2: 10.00
Mount. holes/front: 10.00
Dist. between holes 1: 104.00
Dist. between holes 2: 104.00
Dist. between mount. bracket/hole: 83.30
Dist. between mount. bracket/hole 2: 83.30
Position: 55
Position 2: 5
Rear Cover Type: CB
Length mm: 212.00
Bracket thickness B3: 14.40
Inlet: 1″-14 UNF
Outlet: 1″-14 UNF
Pulley Dist. B1: 50.00
Pulley Dist. B2: 40.00
Pulley Grooves: 8
Pulley type: SP
Pulley OD mm: 119.00
Prod. info: BN
Oil type: PAG 46
Oil capacity: 190 ml.
Refrigerant: R134a
